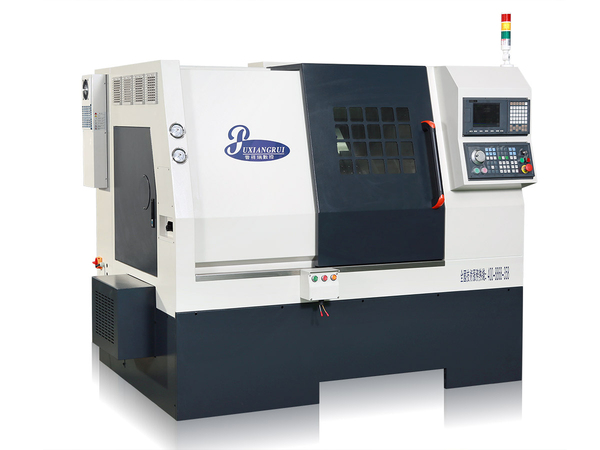

PT46/52/56D Back chip removal CNC lathe
Features：
The machine frame features a proven,rigid 45°integral slant bed construction casted by premium resin sand cast-iron to ensure maximum rigidity and easy chip removal.
Adopt Germany-FAG/Japan-NSK P4 level imported high precision spindle special bearings to ensure optimum turning results,even at high axial and radial loads.
High-performance preloaded ball screws are quipped with precision bearings to ensure sustained,smooth,vibration-free operation.
An automatic lubrication system maintains optimum tool temperature for long tool life,reduces the operator’s workload and simplifies maintenance.
The workspace is enclosed on all sides with easy access through a large sliding door for set-up,tooling and unloading.
Item | Unit | PT46 | PT52 | PT56 |
Max. swing dia. over bed | mm | 380 | 380 | 380 |
Max. swing dia. over slide | mm | 110 | 110 | 110 |
Max.cutting dia. for disc parts | mm | 360 | 360 | 360 |
Max.cutting dia. for axle parts | mm | 100 | 100 | 100 |
Max. cutting length | mm | 200 | 200 | 200 |
Travel | X axis travel | mm | 850 | 850 | 850 |
Z axis travel | mm | 300 | 300 | 300 |
spindle | Spindle end type |
| A2-5 | A2-6 | A2-6 |
Spindle bore | mm | 56 | 62 | 66 |
Max. bar through dia. | mm | 46 | 52 | 56 |
Spindle motor power | Kw | 5.5 | 7.5 | 7.5 |
max. Spindle speed | r/min | 5000 | 4000 | 4000 |
Spindle Bearings |
| Germany-FAG/Japan-NSK |
Feed | Repeat positioning accuracy(X/Z) | mm | 0.005 | 0.005 | 0.005 |
X/Z axis rapid feed | m/min | 30 | 30 | 30 |
X/Z axis ball screw |
| Taiwan-PMI/HIWIN C3 level |
X/Z axis guideway |
| Taiwan-PMI/HIWIN P level |
X/Z axis ball screw bearing |
| Japan |
X/Z axis motor&driver |
| Japan-YASKAWA/FANUC |
Tool post | Tool post type |
| Gang tool | Gang tool | Gang tool |
Max.Tool qty. | station | 10 | 10 | 10 |
Others | CNC controller |
| Taiwan-Syntec/LNC |
total connected load | KVA | 12 | 18.8 | 18.8 |
Dimensions(L*W*H) | mm | 2000×1500×1850 | 2000×1500×1850 | 2000×1500×1850 |
weight | T | 2.5 | 2.6 | 2.6 |
Standard Configuration:
1.coolant system
2.Automatic central lubrication system
3.Hydraulic unit
4.Collet
5.Fully sealed protective enclosure
6.chip bucket
Optional configuration:
1.Automatic bar feeder
2.Automatic bar receiver
3.Automatic chip conveyor&chip bucket
4.Hydraulic chuck
5.Automatically opening and closing door
6.Electric cabinet coolant system
