Vertical machining center
Model: PVM850/1165/1265
Product Detail


Vertical machining center




Creative design idea

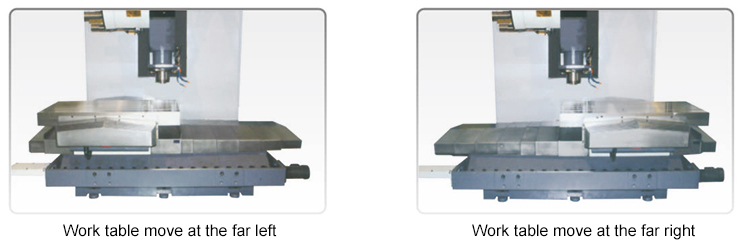

Full-supported bed frame to ensure no draping phenomenon within the X/Y-axis travel range.







Specifications:PVM850
PVM1165PVM1265

X/Y/Z-axis travel

800*500*5001100*650*650120*650*650
Table size900*4801250*6501350*650
Max. table load60010001200
Throat(spindle-to-column surface)485710710
Spindle nose-to-table dist130-630140-790140-790
X/Y/Z-axis motor rating2.0/2.0/3.53.0/3.0/4.54.5/4.5/4.5
X/Y/Z rapid feed30000/30000/30000
ControllerMISUBISHI:M720 可选配 FANUC: 0i-MD(AICC2)
Spindle mountBT40
Spindle speed150001200012000
Spindle motor rating7.5(5.5kw)15(11KW)15(11KW)
Positioning accuracy±0.03/300
Repeat positioning accuracy±0.02/300
Air compressor mount
6-7bar
Overall dimensions
2500*2450*25203300*3100*30003500*3100*3000
weight
600090009500






















Standard Configuration:

● Circulating-type force cooler

Explosion-proof work lamp

Automatic chip conveyor

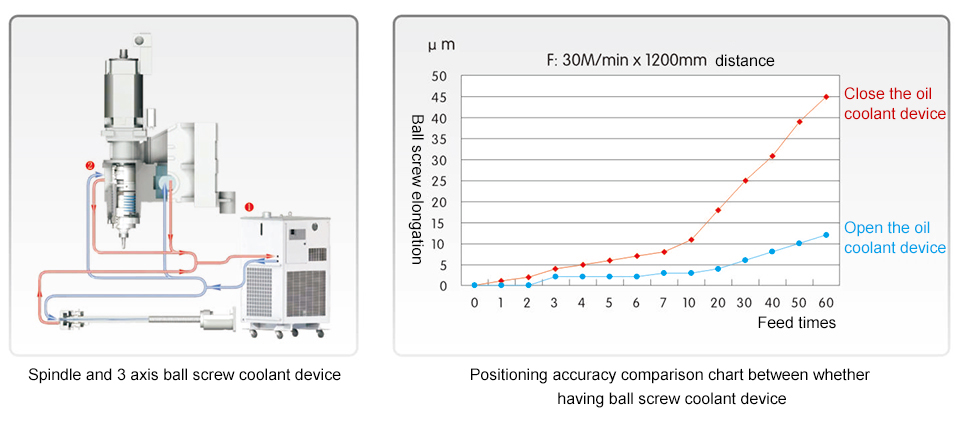

3-axis ball screw oil cooler

Ethernet

Oily-water seperating equipment

Electrical cabinet heat exchanger


Optional Configuration:

Disc type tool magazine

Spindle speed15000/18000/20000

4/5 axis rotating work table

Oilway hilt interface

Water from spindle center
